INNSATSER MF BSP UTVENDIG KONISK
Anvendelse
Høytrykkslanger og lavtrykkslanger sammen med hylse med gripekant.
Brukere
Universelt.
Merknader

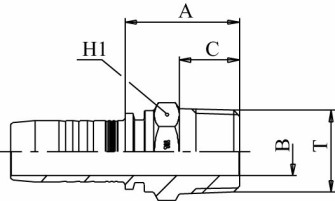

| BSP gjenge tomme | Slange dim. tomme | A mm | B mm | C mm | H1 mm | Materiale | Pakning | Varenr. | Hel pakning | Anbrekk | Sentrallager | Antall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 1/4 | 21,0 | 4,5 | 8,0 | 12 | Stål | 50 | 6515-02-04 | 43.00 | 62.00 |  | |
| 1/4 | 1/4 | 25,0 | 4,5 | 12,0 | 14 | Stål | 100 | 6515-04 | 31.50 | 45.50 | | |
| 3/8 | 3/8 | 27,1 | 7,0 | 12,0 | 19 | Stål | 35 | 6515-06 | 38.00 | 55.00 | | |
| 1/2 | 1/2 | 31,1 | 10,0 | 15,0 | 22 | Stål | 25 | 6515-08 | 52.00 | 74.00 |  | |
| 1/2 | 1/4 | 29,5 | 10,0 | 15,0 | 22 | Stål | 25 | 6515-08-04 | 59.00 | 84.00 | | |
| 3/4 | 3/4 | 35,5 | 17,0 | 17,0 | 27 | Stål | 30 | 6515-12 | 80.00 | 115.00 | | |
| 1 | 1 | 41,8 | 22,5 | 21,0 | 36 | Stål | 15 | 6515-16 | 174.00 | 250.00 | | |
| 1 1/4 | 1 1/4 | 47,5 | 28,5 | 23,0 | 46 | Stål | 8 | 6515-20 | 365.00 | 525.00 | | |
| 1 1/2 | 1 1/2 | 50,0 | 32,0 | 23,0 | 50 | Stål | 5 | 6515-24 | 440.00 | 630.00 | | |
| 2 | 2 | 55,4 | 44,0 | 27,0 | 65 | Stål | 3 | 6515-32 | 725.00 | 1040.00 | |
| BSP gjenge tomme | Slange dim. tomme | A mm | B mm | C mm | H1 mm | Materiale | Varenr. | Pris pr. stk | Sentrallager | Antall |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 1/4 | 25,0 | 4,5 | 12 | 14 | AISI 316 | 66515-04 | 430.00 | | |
| 3/8 | 3/8 | 27,1 | 7,0 | 12,0 | 19 | AISI 316 | 66515-06 | 360.00 | | |
| 1/2 | 1/2 | 31,1 | 10,0 | 15,0 | 22 | AISI 316 | 66515-08 | 620.00 | | |
| 3/4 | 3/4 | 35,5 | 17,0 | 17,0 | 27 | AISI 316 | 66515-12 | 530.00 | | |
| 1 | 1 | 41,8 | 22,5 | 21,0 | 36 | AISI 316 | 66515-16 | 800.00 | | |
| 1 1/4 | 1 1/4 | 47,5 | 28,5 | 23,0 | 46 | AISI 316 | 66515-20 | 1390.00 | | |
| 1 1/2 | 1 1/2 | 50,0 | 32,0 | 23,0 | 50 | AISI 316 | 66515-24 | 1600.00 | | |
| 2 | 2 | 55,4 | 44,0 | 27,0 | 65 | AISI 316 | 66515-32 | 3600.00 | |
